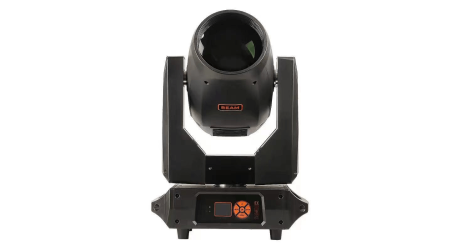

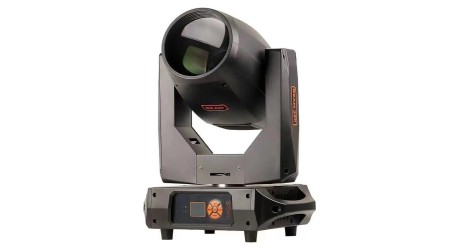

BEAM 18R 350W

Lamp type: YODN R18 350w bulb, lifespan 2000 hours
Color temp : 8000K
Reflector: Lamp and reflector together in one unit
Lens : high precision optical lens
Beam angle:  0 - 5° ,75000lux @ 20m

COLOR SYSTEM
14 color filters + white, color rainbow can be created

GOBO SYSTEM
1 fixed gobo wheel with 17 gobos + white

EFFECT EQUIPMENT
Independent frost soft effect
Mechanical linear 0-100% dimming
Fast strobe, multiple strobe effects (pulse/asynchronous/synchronous/slow- medium-fast at random)
Prism: 3 prisms,(1pcs 16-facet circular prism,1pcs special prism,1pcs rainbow prism ), bidirectional rotation

MOVING PARAMETER
Angle: Pan 540°, Tilt 270°
PAN and TILT adopt electro-optic reset system, automatically reset the pan and tilt movement caused by accident

CONTROL AND PROGRAMMING
Control channel: 16CH / 24CH
Protocol: Standard DMX512 protocol
Menu display: 16 million pixels LCD display , random switch of Chinese and English language; menu available to display 180° reversely.

ELECTRONIC CONTROL TECHNOLOGY
Intelligent fan control
Electronic sensor detection
DMX control monitor
X/Y three-phase motor drive
Query by LCD screen

POWER SUPPLY
AC100-240V 50/60Hz
Electronic ballast
Max input power: 500w
